Introduction
Format: Spin columns
Sample: Plant tissues
Sample size: Up to 100mg / 1g fresh sample
or 20mg / 200mg dry sample
Operation: Centrifuge / vacuum manifold
Operation time: 30~60 minutes
Binding capacity: 50µg~500µg DNA
Application: PCR、Real-time PCR、Southern blotting、AFLP、PADP/ AFLP



ATP™Plant Genomic DNA Mini/Maxi Kit provides a fast and simple method to isolate total DNA (genomic DNA, mitochondrial, chloroplast and viral DNA) from plant tissue and cells.

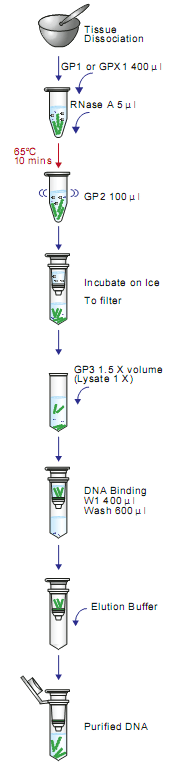

1.  Plant tissues are ground in liquid nitrogen and lysed by a buffer containing detergent .

2.  The tissue debris in lysate could be removed by the provided filter column.

3.  In the presence of a chaotropic salt, the genomic DNA in the lysate binds to the glass fibre matrix in the spin column.

4.  After washing off the contaminants, the purified DNA is eluted by a low salt elution buffer or water.

Sample

DNA yield (μg)

Mini(100mg leaf)

Maxi( 1g leaf)

Arabidopsis ( Arabidopsis thaliana )

3~5

30~50

Bamboo ( Bambusa lodhamii )

10~15

100~150

Camphor tree( Cinnamommun camohora )

15~20

150~200

Chianes Yam ( Rhizoma dioscoreae )

30~60

300~500

Maize ( Zea mays )

15~20

150~200

Orchis ( Phalaenopsis aphrodite )

5~10

50~100

Rice( Oryza sativa )

10~15

100~150

Spinach ( Spinacia oleracea )

5~10

50~100

Sweet potato ( Ipomoea batata )

20~30

200~300

Tobaco ( Nicotiana tabacum )

20~25

200~250

Tomato ( Lycopersicon esculentum )

10~15

100~150




Quality Control

The quality of ATP™ Genomic DNA Kit (Plant) is tested on a lot-to-lot basis. The Kits are tested by isolation of genomic DNA from 50mg young leave. The purified DNA is quantified with spectrophotometer and the yield of genomic DNA is more than 10 μg with A260/A280 ratio 1.7 to 1.9.


Kit Contents:Cat.No. / Kit Contents
XXX
XXX
123
123
