Introduction
Format: 96-Well
Sample: 00mg agarose gel slice;10~50µl PCR product or other enzymatic reaction
Operation: Centrifuge / vacuum manifold
Operation time: 30 minutes
Elution volume: 50μl
Application: DNA Sequencing;Ligation;PCR;Restriction Digestion;DNA labeling
For research use only ; Not for diagnostic or drug purposes



ATP™96-Well PCR Clean Up Kit provides a high-throughput, rapid and economical method to purify DNA fragments.

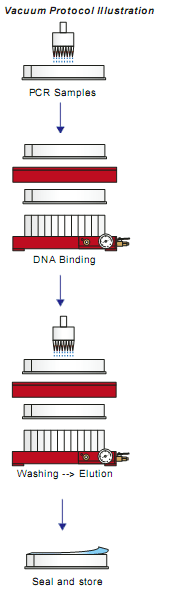

1.  The method utilizes a chaotrophic salt to denature enzymes and in this condition DNA fragment is absorbed to the fibre matrix in each well of the plate.

2.  Following washing of contaminants, the purified DNA is eluted by low salt buffer or water. Salts, enzymes and unincorporated nucleotides are effectively removed from reactions mixtures without toxic phenol extraction and alcohol precipitation.

The entire procedure can be completed in 30 minutes.




Quality Control

The quality of 96-Well Gel/PCR DNA Extraction Kit is tested on a lot-to-lot basis. The efficiency of DNA recovery is tested by isolation of DNA fragments of various sizes. The purified DNA is checked by agarose gel analysis.


Kit Contents:Cat.No. / Kit Contents
ADF9602
(2 x 96prep / kit )
ADF9604
(4 x 96prep / kit )
ADF9610
(10 x 96prep / kit )
Binding Buffer :80ml
Wash Buffer (concentrated):25ml X 1
Elution Buffer:30ml
96-Well binding plate:2pcs
0.35 ml Collection Tubes:2pcs
Adhesive film:4pcs
Binding Buffer :120ml
Wash Buffer (concentrated):25ml X 2
Elution Buffer:30ml
96-Well binding plate:4pcs
0.35 ml Collection Tubes:4pcs
Adhesive film:8pcs
Binding Buffer :240ml + 80ml
Wash Buffer (concentrated):50ml X 2
Elution Buffer:60ml
96-Well binding plate:10pcs
0.35 ml Collection Tubes:10pcs
Adhesive film:20pcs
